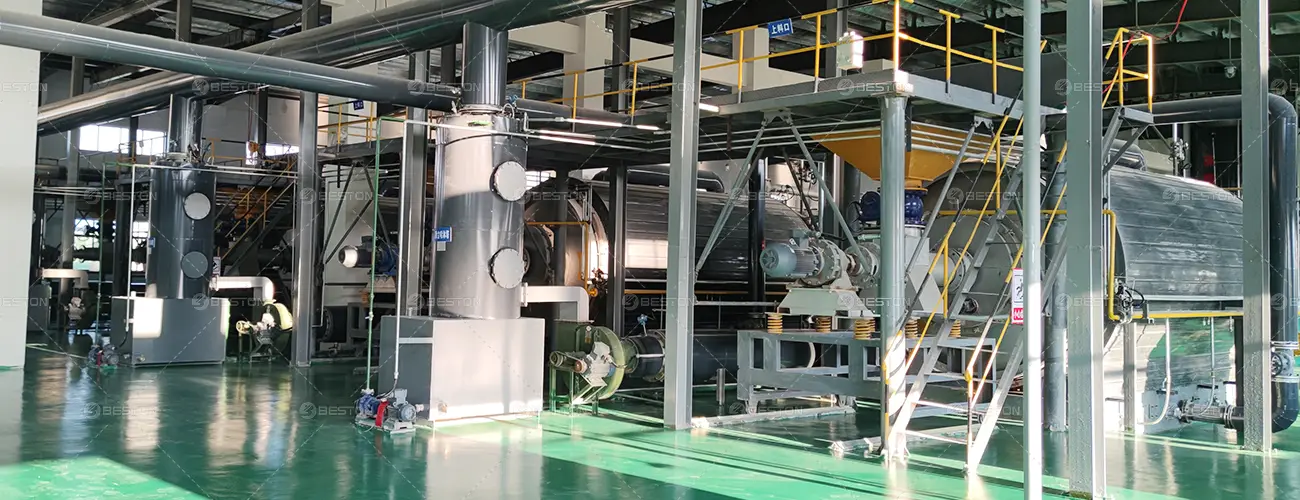

Small pyrolysis machine uses batch operation to achieve pyrolysis of plastic, oil sludge, tyre and other solid wastes. Batch means each operation goes through feeding, heating, reaction, cooling, discharging to complete a complete production cycle. Then the next batch operation starts again. Such a equipment produces valuable resources, including pyrolysis oil, carbon black, syngas, etc. The equipment is flexible in operation and has a variety of configurations. Therefore, small pyrolysis plant has become a sustainable investment option for many recyclers.
Raw Materials for Small Pyrolysis Machine
Common recycling raw materials for small pyrolysis plant includes waste plastic, oil sludge, and scrap tyre. They are byproducts of various industrial manufacturing and consumer activities. In addition, these raw materials are usually derived from fossil resources. On the one hand, improper handling of these materials can lead to serious ecological harm. On the other hand, they have high recycling potential. The following are the characteristics of the main raw materials for pyrolysis:
Waste Plastic
- Main Types: PE (Polyethylene), PP (Polypropylene), PS (Polystyrene), etc.
- Reactive Components: High-molecular hydrocarbon polymers
- Products: Pyrolysis oil, industrial residues
Oil Sludge
- Main Types: Oil-contaminated soil, oil-based drilling cuttings, etc.
- Reactive Components: High-molecular petroleum hydrocarbons
- Products: Pyrolysis oil, solid residue
Scrap Tyre
- Main Types: Passenger tyre, commercial tyre, OTR (Off-the-Road) tyre, etc.
- Reactive Components: High-molecular rubber derived polymers
- Products: Pyrolysis oil, carbon black, steel wire
Parameters of Small Pyrolysis Machine for Sale
| Model | BLJ-16 Standard | BLJ-16 TDU | BLJ-16 WAX | BLJ-16 CAT | BLJ-16 ULTRA |
| Manufacturer | BESTON | BESTON | BESTON | BESTON | BESTON |
| Time to Market | 2013 | 2013 | 2022 | 2022 | 2022 |
| Motor Brand | Chinese brand | Chinese brand | Chinese brand | Chinese brand | ABB Explosion-proof |
| Suitable Raw Materials | Whole tire<120cm; Tire blocks<15cm; Oil soil with liquid content<30% | Oil sludge; Landing oil sludge; Drilling waste; Tank bottom oil sludge | Waste plastic bales (Max.0.9*0.9*1.6m) | Waste plastic bales (Max.0.9*0.9*1.6m) | Waste plastics; Tires; Oil sludge |
| Input Capacity (Max.) | Whole tire <120cm or Tire blocks<15cm: 10-12t/batch Sidewall removed tire: 15-16t/batch Oil soil: 16-18t/batch | 16-18t/batch | 8-10t/batch | 8-10t/batch | Waste plastic bales: 8-10t/batch Whole tire <120cm or Tire blocks<15cm: 10-12t/batch Sidewall removed tire: 15-16t/batch Oil sludge: 16-18t/batch |
| Working Method | Batch | Batch | Batch | Batch | Batch |
| Final Oil Quality | Pyrolysis oil | Pyrolysis oil | Pyrolysis oil with wax | Pyrolysis oil with naphtha | Pyrolysis oil Pyrolysis oil with wax or naphtha |
| Reactor Materil | Q345R Boiler steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Reactor Life Span (Years) | 2-3 | 5-8 | 5-8 | 5-8 | 5-8 |
| Guarantee (Months) | 12 | 12 | 12 | 12 | 12 |
| Delivery Time (Calendar Days) | 45 | 60 | 60 | 60 | 90 |
| Land Space Required (L*W*H*m) | 33*13*8 | 33*13*8 | 33*13*8 | 33*13*8 | 33*26*8 |
| Packing | 1*40FR+3*40HQ | 1*40FR+3*40HQ | 1*40FR+3*40HQ | 1*40FR+3*40HQ+1*20GP | 1*40FR+8*40HQ |
| Installation Period (Calendar Days) | 45 | 45 | 45 | 45 | 60 |
Component Diagram of Small Scale Pyrolysis Equipment
Operation Steps of Small Pyrolysis Machine
The operation of a small scale pyrolysis unit mainly includes the steps of feeding, pyrolysis reaction, finished product collection and waste gas treatment. Each process is followed by the next process. The following is the specific operation process of each process. In order to understand the operation process more intuitively, the following is an example of the operation video of a plastic to oil machine.
Raw Material Feeding
01
Main Furnace Preheating
02
Pyrolysis Reaction
The raw materials in the small scale pyrolysis equipment undergo thermal decomposition. The molecular bonds of the high molecular hydrocarbons in the raw materials are broken to form small molecular hydrocarbons. At this time, high-temperature oil gas is formed and goes through the following stages:
- Oil Gas Condensation: Under the action of the condensation system, the condensable components in the high-temperature oil gas form liquid fuel oil.
- Syngas Recovery: The non-condensable components in the high-temperature oil gas enter the water seal. It undergoes purification to form syngas. Syngas enters the combustion system to replace the original fuel to provide energy for the pyrolysis reaction.
- Waste Gas Treatment: The waste gas passes through the flue condenser and spray tower for cooling and dust removal. Finally, the chimney discharges it.
03
Cooling
04
Solid Residue Discharge
05
Utilization Value of End Products from Small Scale Pyrolysis Unit
Pyrolysis Oil
- Raw pyrolysis oil serves as an alternative fuel to traditional petrochemical energy for boilers, kilns.
- Distilling pyrolysis oil produces non-standard diesel, suitable for heavy oil generator sets and heavy oil engines.
- Distilling plastic pyrolysis oil produces recycled naphtha, which supports processing of plastics or chemical products.
Carbon Black
- Raw carbon black serves as a filler in building materials, improving the strength and durability of the materials.
- Raw carbon black acts as a black pigment in paints, coatings, and inks, offering high tinting power.
- Refining carbon black produces recycled carbon black (rCB), suitable for processing green tires and rubber products.
Other By-products
- Solid residue from oil sludge small pyrolysis machine serves as an anti-collapse agent for oil wells, improving their stability.
- Using harmless industrial residues to make bricks and building fillers can enhance the strength of materials.
- Recycled steel wire can be processed into steel products or sold directly to metal recycling companies.
Flexible configuration of Small Pyrolysis Machine

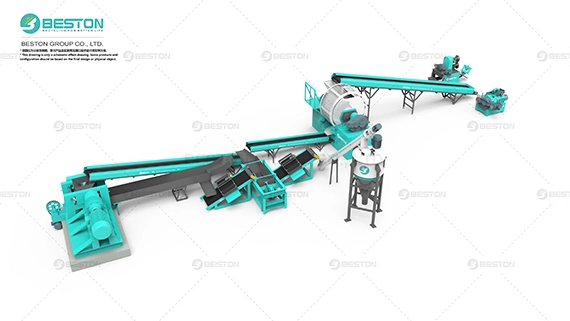

Feeding System
Manual Feeding
Manual feeding system is suitable for feeding size not exceeding 1.2 meters, low working efficiency, suitable for small-scale production or infrequent replacement of raw materials. It can reduce overall pyrolysis plant cost.
Hydraulic Feeding
Hydraulic feeding system is suitable for feeding size not exceeding 1.2 meters. It has high working efficiency, suitable for small and medium-sized production environments. This system can complete feeding tasks more quickly.
Screw Feeding
Screw feeding system is suitable for feeding size not exceeding 5 cm. It has high working efficiency, suitable for processing granular or fine materials. Batch pyrolysis plant with this systam can feed stably. Also, it’s suitable for more automated production needs.

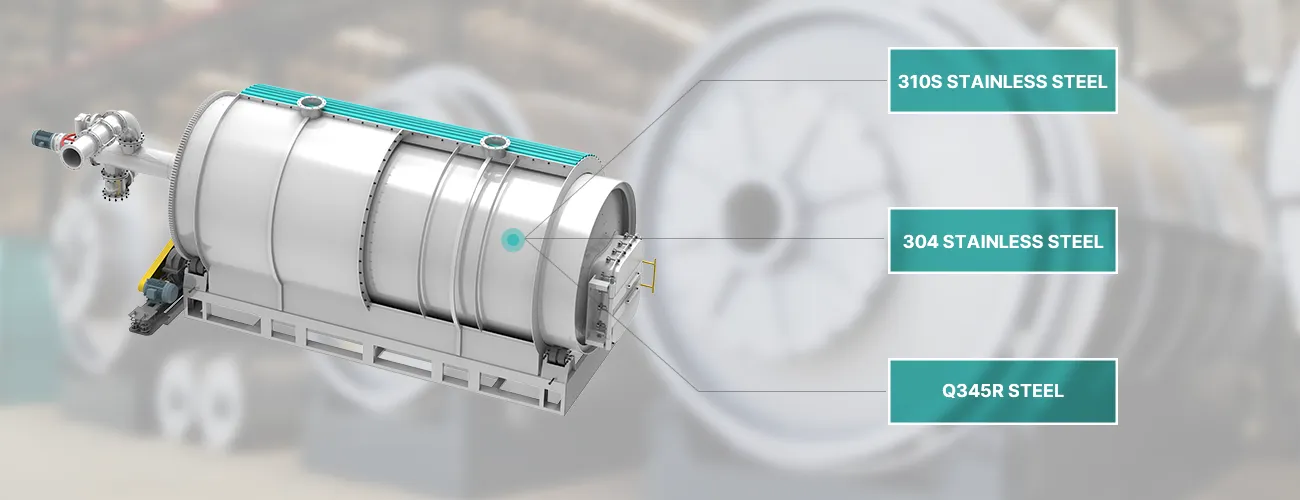

Main Furnace Material
Different from continuous pyrolysis plant, small pyrolysis machine have a wider range of main furnace material options. According to the characteristics of the raw materials and usage requirements, choosing the right material can maximize the operating efficiency of the equipment.
310S Stainless Steel
- Temperature Tolerance: Up to 1035°C
- Corrosion Resistance: Excellent oxidation corrosion & acid corrosion resistance
- Service Life: 8-10 years
- Suitable Raw Materials: Plastic
304 Stainless Steel
- Temperature Tolerance: 600-700°C
- Corrosion Resistance: Good, suitable for medium temperature environments
- Service Life: 5-8 years
- Suitable Raw Materials: Oil sludge, tyre
Q345R Steel
- Temperature Tolerance: 450°C
- Corrosion Resistance: Average, suitable for low temperature environments
- Service Life: 1-2 years
- Suitable Raw Materials: Tyre
Condensation System
3 – in – 1 Condensation System
Integrates the condenser, water seal, and oil storage tank into one unit. It occupies less space, is easy to install, and is suitable for small scale pyrolysis plant with limited space.
Vertical Condensation System
This condenser and oil storage tank have a vertical structure. Also, it has high heat exchange efficiency. Vertical condenser features an open structure, making maintenance easier.
Advantages of Beston Small Pyrolysis Unit for Sale
Catalytic Plastic Pyrolysis Technology
The equipment adopts meteorological catalytic plastic pyrolysis technology. This technology can solve the technical problem of wax oil clogging the pipeline. This will help ensure the continuous and stable operation of plastic to fuel machine. At the same time, the yield of pyrolysis oil is also improved.
Nitrogen Protection System
The small pyrolysis machine is introduced with nitrogen for gas replacement before ignition and discharge. The nitrogen system can effectively remove the residual air and combustible gas in the reactor. Thus, this prevents the main furnace from flashing. This ensures smooth operation and operator safety.
Floating Seal Technology
This sealing technology uses a sealing that combines carbon fiber with high-temperature resistant soft filler. Compared with other filler sealing technology, this sealing form has high temperature resistance, corrosion resistance, and wear resistance. Therefore, this ensure dynamic sealing in operation.

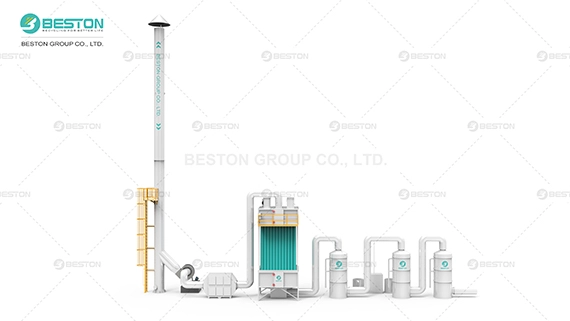

High-end Exhaust Gas Treatment System
In order to meet the high emission standards in some regions, we provide high-end exhaust gas treatment equipment. The equipment covers desulfurization, denitrification, dust removal, activated carbon adsorption, etc. The high-end exhaust gas treatment system ensures the gas emissions meet EU standards.
Profitability Analysis of Beston Small Pyrolysis Machine
| Return on Investment of BLJ-16 Tyre Pyrolysis Project in Europe | |||||||
| Introduction | According to the market data of Europe, the estimated ROI report, the various expenses are as follows: | ||||||
| Fixed Investment Cost | Item | Details | Unit | Unit Price/USD | Quantity | Amount/USD | Remark |
| Equipment | BLJ-16 | Set | 89000 | 1 | 89000 | ||
| Transportation | Seafreight | Set | 64600 | 1 | 64600 | ||
| From Port to Site | Set | 5800 | 1 | 5800 | |||
| Customs Tax | 0.15 | Set | 13350 | 1 | 13350 | ||
| Installation | Beston technician's salary | Day | 350 | 50 | 17500 | ||
| Round-trip aritickets | Ea | 3820 | 2 | 1640 | |||
| Visa | Ea | 750 | 1 | 750 | |||
| Local welder | Day | 120 | 100 | 12000 | 2 welders are needed | ||
| Local plumber | Day | 120 | 20 | 2400 | |||
| Local labor | Day | 108 | 50 | 5400 | |||
| Crane forklift | Day | 160 | 30 | 4800 | |||
| Materials | Installation materials ready | Set | 5200 | 1 | 5200 | Foundation, pipe, etc. | |
| Licenses | / | Ea | 2000 | 1 | 2000 | Environmental, firefighting, etc. | |
| Workshop | 500 | ㎡ | 380 | 500 | 190000 | ||
| Total Amount | $452440.00 | ||||||
| Operating Cost | Raw Materials | Waste tyre | Ton | 0 | 12 | 0 | |
| Water | / | m³ | 0.39 | 3 | 1.17 | ||
| Electricity | / | KWH | 0.2 | 864 | 172.8 | ||
| Fuel | Natural gas | Liter | 0.77 | 240 | 184.8 | ||
| Labor | / | People | 72 | 4 | 288 | ||
| Maintenance | / | Day | 85 | 1 | 85 | ||
| Depreciation | 8 years | Day | 175.18 | 1 | 175.18 | ||
| Tax | 5% | 0 | |||||
| Total Amount | $906.95 | ||||||
| End Products Price | Tyre oil | 45% | Ton | 5.4 | 433 | 2338.2 | 45% of input |
| Steel Wire | 15% | Ton | 1.8 | 216 | 388.8 | 15% of input | |
| Carbon black | 3% | Ton | 3.6 | 162 | 583.2 | 30% of input | |
| Subsidy | Ton | 100 | 12 | 1200 | |||
| Total Amount | $4510.2 | ||||||
| Daily Income | $3603.25 | ||||||
| Monthly Income | Working day | Day | 25 | $90081.17 | |||
| Yearly Income | Working day | Day | 300 | $1080974 | |||

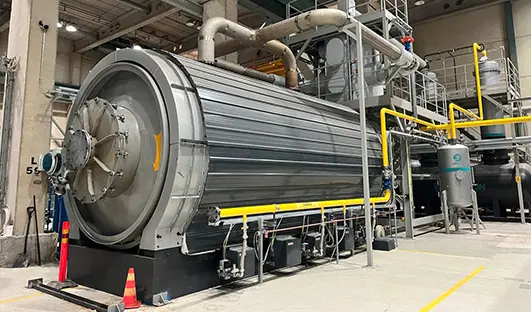

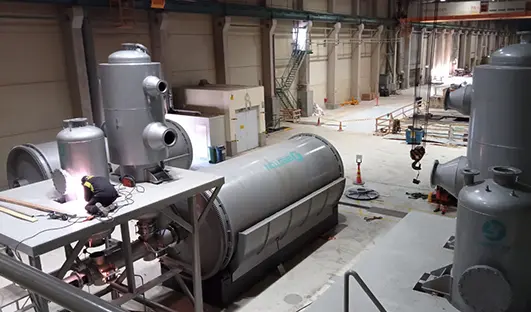

See Projects of Beston Small Pyrolysis Plant Around the World

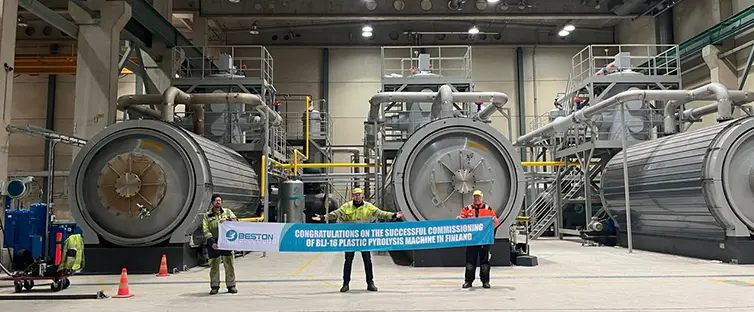

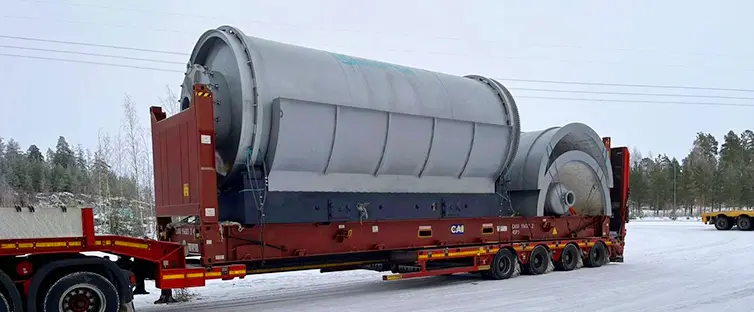

Beston Group has been committed to providing sustainable waste management solutions for customers around the world. With advanced technology and innovative design, Beston’s small scale pyrolysis equipment has won unanimous praise from customers around the world. By converting waste into valuable resources, our equipment helps investors achieve a win-win situation of environmental protection and economic benefits. Here are some successful cases for your reference.
Achieve Sustainable Success with Beston Group
Beston small pyrolysis machine provides a flexible and sustainable solution for waste management. The machine features customizable configurations and advanced technology, which provide efficient, safe, and eco-friendly operations. Our advanced equipment has earned global recognition, making our small pyrolysis plant a profitable investment for recyclers around the world. Contact us, join us, and succeed together! If you would like to learn more about our recycling programs, please visit us on Facebook.
